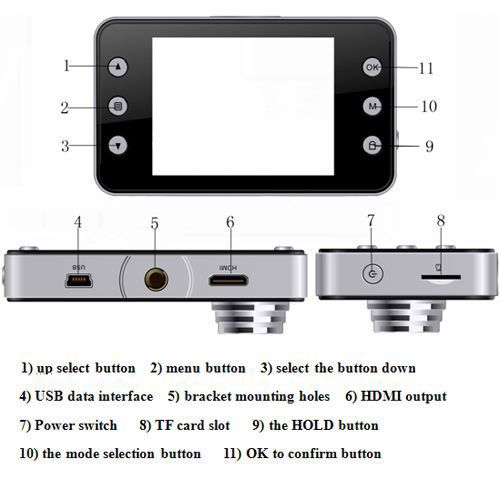

Description of function keys:

1) Select button up
Standby or short video process click here the key to digital narrow regulation;Down regulate the function key menu options;

2) Menu button
Short-Press to bring up the feature set menu;

3) down the Select button
Standby or short video process click here button can digital zoom adjust; Down to select the function key menu options;

4) USB Data Interface
USB data interface, (1) for connecting a PC to transfer data; (2) for connecting an external power supply to charge the battery or supplies power to operate;

5) bracket mounting holes
Connect the car bracket mounting screw holes;

6) HDMI output interface
HDMI output to connect high-definition display devices;

8) TF card slot
Memory card slot

9) the HOLD button
Press this button, the recording process, the current video file is saved as can not be deleted;

10) the mode select button
Short Press to switch between each other in the camera / camera / playback;

11) OK to confirm button
Video and take pictures to confirm button, the camera mode, short press this key to start recording again press stop recording; camera mode Short Press to take pictures

• REC/photo operation specifications

Power on/off

Press on  one  time to start, Blue indicator light will shine when power on

Then press again on   to shutdown and the blue indicator light go out

Notice: video instrument will automatically power off after waning of low  battery

REC mode

Short press on  shift  to REC mode, REC icon is on the top left corner

Short press on   to start recording, recording icon and indicator light shinning indicate the  recording is on the way

Photo mode

Short press on  shift  to photo mode, an photo icon is on the top left corner

Then short press on   to take a photo, screen flash one time means photo completed

Video/photo playback

Short press on  ,  shift to playback mode , playback icon is on the top left corner

Short press on   key can choose files up

Short press on  key  can choose files down

Short press on    to play the selected video files

Menu setting

Short press on    enter video set status, re-press   to shift among “resolution” “video duration” “setting”

Press  or    keys to choose up and down in setting items.

Select the items which needed change, short press  to modify.

Time settings

Continuous short press  to enter  “setting item”, here short press on  to  choose Time Setting, short press on to  enter, then short press  can make  shifts among year/month/date/hour/minutes/second. Adjust figure through   buttons,  then press “OK” button to confirm modification.

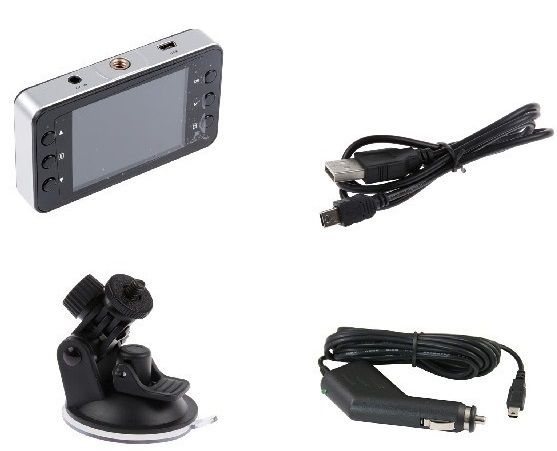

Package Included as below:
